CKS TB_38 - 38.1mm (1.5") Rugged Industrial Black Universal/Reduced Trackerball
Ruggedised trackerballs are one of the most reliable computer peripheral devices. In fact, many computing devices used for precise system monitoring operations have an integrated industrial-grade trackball.
The CKS TB38 – 38.1 mm (1.5”) rugged industrial trackerball has the features ideal for the steel manufacturing, military, and distribution industries. It is made with a phenolic resin material which resists wear and liquid chemicals. As a result, it can withstand prolonged use in many industrial processes.
With an extended 3 year warranty as standard, the CKS TB38_38 can handle long-lasting and consistent controls.
Ideal for all industrial, rugged applications, Keyboard Specialists Ltd (KBS) would recommend the CKS range for all controls. Contact a member of the KBS team on 0203 474 0234 for more information.
Technical Specification
- Approvals: FC, CE, IP, NEMA, ROHS,
- Ball Diameter (nominal): 38.1mm (1.5")
- Cable Length: 2 m

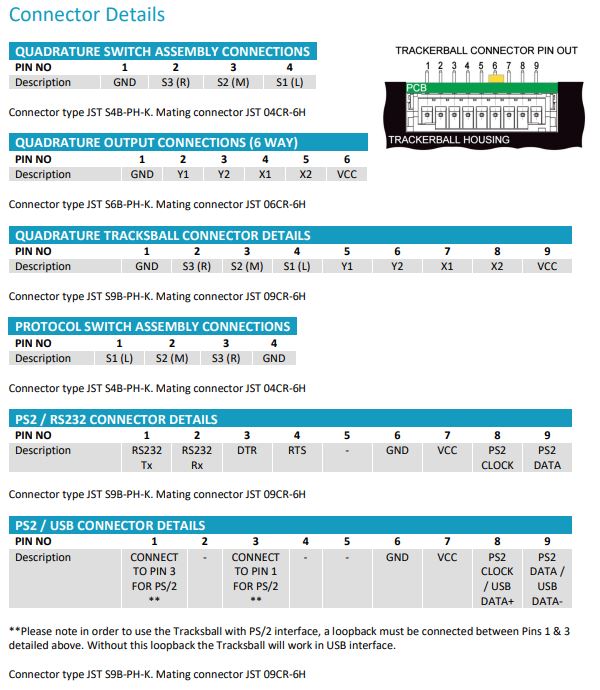

- Connections: USB / PS2 / AT / RS232 / RS422 / RS485 / XT / TTL / DEC / SUN
- Datasheet: CKS-TB_38.pdf

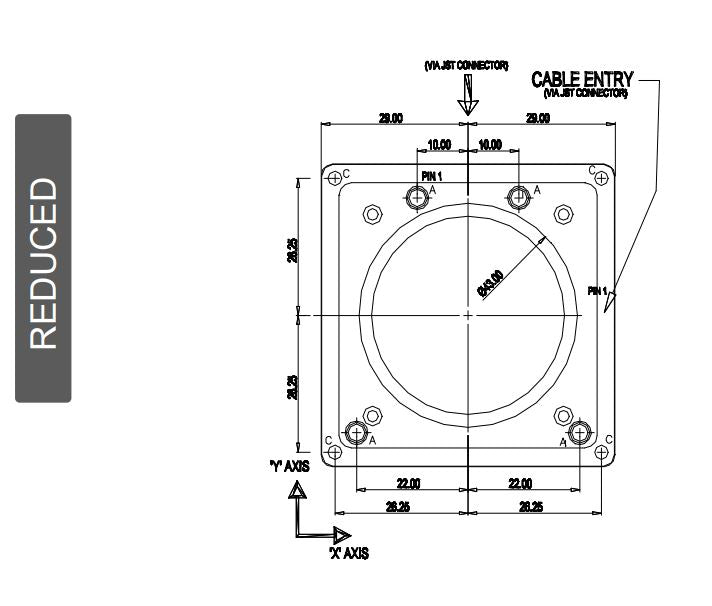

- Dimensions: Refer to images for Universal and Reduced Dimensions.
- Integrated Peripherals: Trackball
- IP Rating : IP 65
- Material: Phenolic Resin Ball
- Mounting: Can be supplied with interface cabled and buttons for mounting into customers equipment
- Special Features: Fully customisable TB_38 Series Tracksball
- Tracking Force: 20 g
- Warranty: 3 Year RTB Warranty - Extendable up to 5 Years
- Weight: 80 g
- Download Datasheet
