CKS TB_50 - 50mm (2") Rugged Industrial Trackerball
SKU: CKS-TB_50_BK_65_Q
Ruggedised trackerballs are one of the most reliable computer peripheral devices. In fact, many computing devices used for precise system monitoring operations have an integrated industrial-grade trackball.
The CKS TB50 – 50mm (2″) rugged industrial trackerball is a high specification; rear panel mounted 50mm trackerball with a quadrature, full protocol or USB interface. Its approximate 6 million ball revolutions mean that it can function optimally despite prolonged usage. Also, it has an operating temperature of -20°C to +60°C. So, expect that this device can withstand extreme temperature conditions.
The CKS TB_50 50mm (2”) rugged Tracksball is enclosed in an IP65 and NEMA 4 front sealed casing. This prevents foreign substances from damaging the internal circuitry. Our industrial-grade Tracksball is compatible with a wide range of computer interfaces.
This includes USB, PS2, and SUN interface compatibility. Clients can opt for the device interface needed in their industry.
With an extended 3 year warranty as standard, the CKS TB50_50 can handle long-lasting and consistent controls.
Ideal for all industrial, rugged applications, Keyboard Specialists Ltd (KBS) would recommend the CKS range for all controls. Contact a member of the KBS team on 0203 474 0234 for more information.
Technical Specification
- Approvals: FC, CE, IP, NEMA, ROHS,
- Ball Diameter (nominal): 50mm (2”)
- Cable Length: 2 m

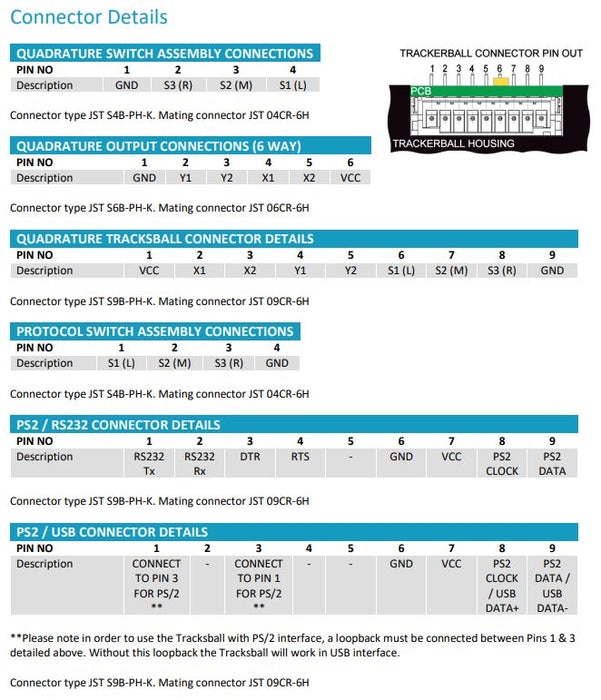

- Connections: USB / PS2 / AT / RS232 / RS422 / RS485 / XT / TTL / DEC / SUN

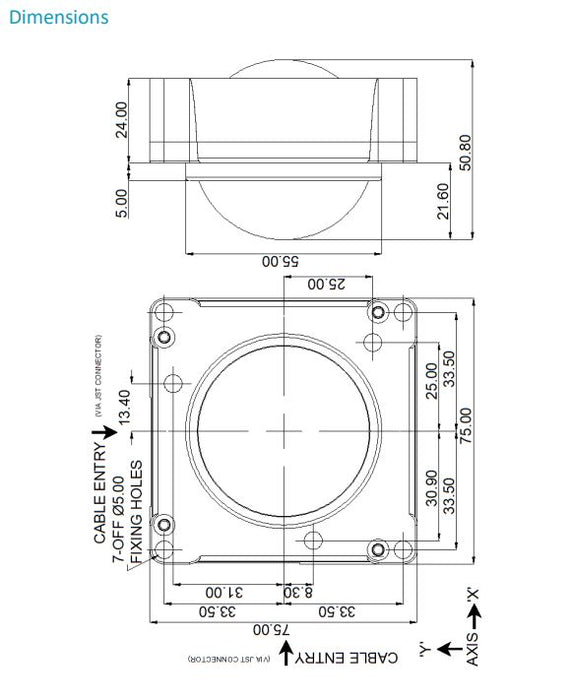

- Dimensions: Refer to image titled "Dimensions".
- Integrated Peripherals: Trackball
- IP Rating : IP 65
- Material: Phenolic Resin Ball
- Mounting: Can be supplied with interface cabled and buttons for mounting into customers equipment
- Tracking Force: 50 g
- Warranty: 3 Year RTB Warranty - Extendable up to 5 Years
- Weight: 260 g
